Code: Hire_28

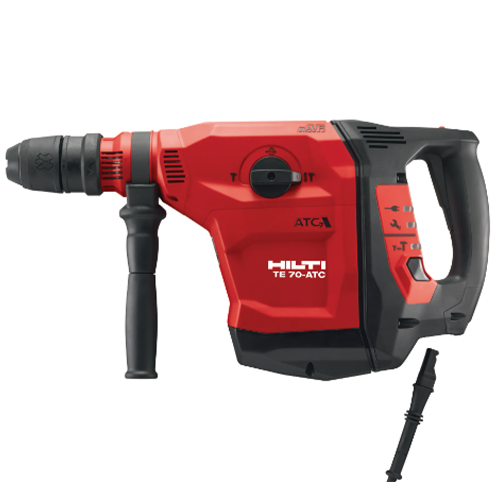

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiselling in concrete
Available to Order
This Product is part of our hire range please contact us on Via phone 0402 32201 via E mail Hire@toplinebolands.ie or send us a quote though the web site and one of our tem will be in touch.
Features
Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the drill bit jams – helping to reduce a common safety hazard
Active Vibration Reduction (AVR) makes the tool less tiring to use
Helping to increase daily productivity
Virtually maintenance-free brushless SR motor and double-chamber lubrication systems for longer service intervals and tool lifetime
Optional DRS-Y dust removal system collects up to 95% of dust
Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite
Applications
Hammer drilling in concrete, masonry and natural stone with drill bits 12-150 mm in diameter
Drilling holes for heavy-duty anchors from 20-40 mm in diameter
Breaching and demolition with pointed and flat chisels
Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
Drilling holes for heavy-duty anchors from 3/4" - 1-3/4" in diameter
| Optimum hammer drilling range | 20 - 55 mm | Weight according to EPTA Procedure 01/2003 | 10 kg |
|---|---|---|---|
| Dust removal system available | TE DRS-Y, TE DRS-D | Triaxial vibration value for hammer drilling into concrete (ah,HD) | 8.3 m/s² 1 |
| Functionality | Active Torque Control (ATC), Chiselling, Power reduction, Active Vibration Reduction (AVR) | Full hammering frequency | 2830 impacts/minute |
| Hammer drilling RPM | 245 tours/minute | Single impact energy | 14.5 J |
| Hammer drilling diameter range | 12 - 55 mm |
